Thermally Broken Frameless Double Glazing - Patent Pending
Calculation of our U Values

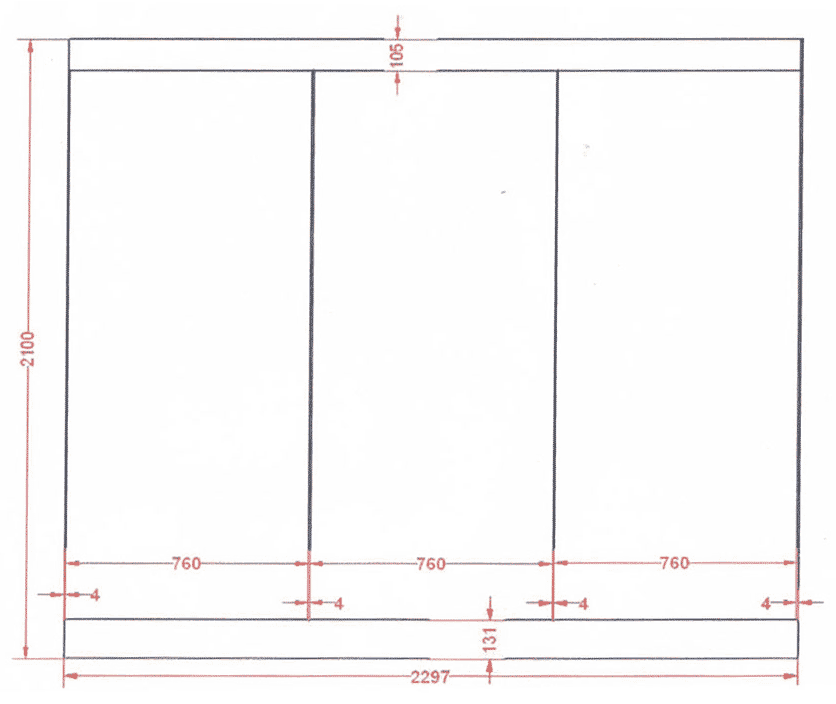

| Screen Width - 2.297m, Screen Height - 2.1m, Total Area - 4.8237m, Area Glass - 4.2497m², U Glass - 1.11 W/m²K |

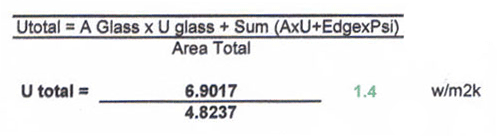

U - U value (W/m²K), Q - Heat Flow (W/mK), H - Height of Section (m), L - Length of Edge (m), Psi - Linear thermal transmittance (W/mK), A - Area of Frame (m²) |
| U | Q | H | L | Psi | A | ||
| Head | Glass Insulation | 3.463 3.224 |
11.455 10.69 |
0.1045 | 2.28 | 0.0250 | 0.24 |
| Sill | Glass Insulation | 3.686 3.327 |
13.906 12.699 |
0.1314 | 2.28 | 0.0472 | 0.302 |
| Jamb | Glass Insulation | 5.126 3.723 |
10.195 4.306 |
0.0043 | 3.728 | 0.0060 | 0.016 |
| Meeting Site | Glass Insulation | 9.958 4.349 |
17.167 8.309 |
0.0043 | 7.456 | 0.0121 | 0.016 |
| 0.574 |
|
Click to enlarge |

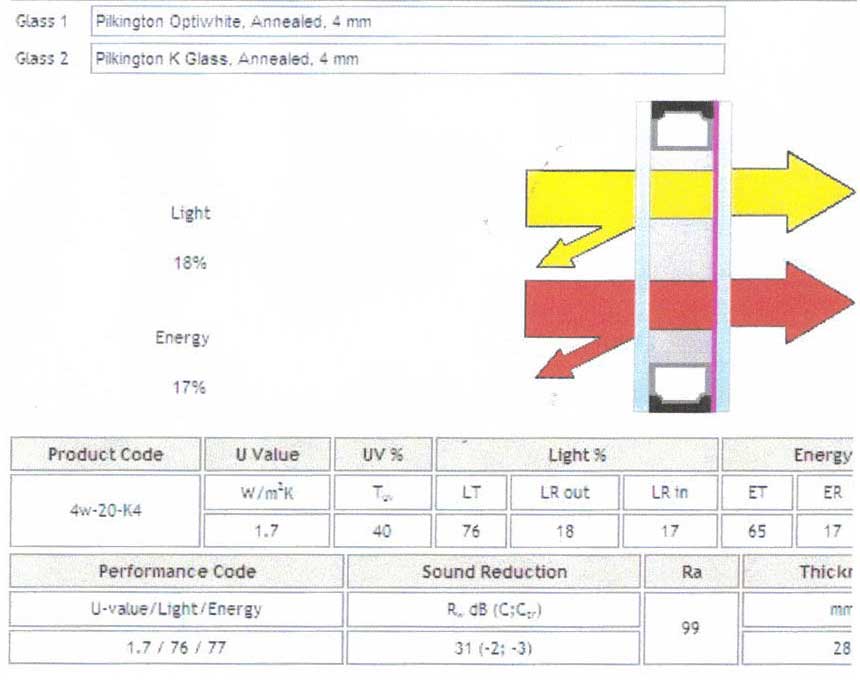

Relative Pilkingtons U Value of our Product
